Case-Study: 5-WHY Toyota Welding Robot

Mark Galley

The 5-Why method is part of Toyota’s history. Sakichi Toyoda (1867 to 1930) founded Toyoda Automatic Loom Works in 1892 to improve the process for making woven fabric. He is credited with developing the 5-Why problem solving method. Toyoda Automatic Loom Works grew into Toyota Industries and Toyota Motor Corporation. Taiichi Ohno (1912-1990) was another quality pioneer at Toyota. Taiichi is recognized as the architect of the Toyota Production System in the 1950s and what is now called lean manufacturing. He continued to drive the 5-Why method within Toyota and described it as the basis of Toyota’s scientific approach.

5-WHY Logic

Many organizations use a strict interpretation of 5-Whys where the 5th Why is known as the root cause. Asking a few Why questions is a simple way to begin analyzing a problem, but there is nothing special about the number five – other than it’s after four and before six. Contrary to popular belief the 5th why is not “the root cause” of the issue. The 5th why is a cause of the issue, just not the cause. 5-Why is a sound approach, but it’s simply a phase of a root cause analysis investigation, not a complete method. A cause-and-effect analysis begins with 1-Why and then continues with as many Why questions as needed to explain the issue.





In the welding robot example the 5th why question is “Why is the intake clogged with metal shavings?” The answer is “Because there is no filter on the pump.” This 5-Why example implies that adding a filter will address the metal shavings in the oil, but there is another important question that must be asked: “Why are there metal shavings in the oil? “ This analysis needs a few more Why questions.

Expanding the 5-WHY

Regardless of the magnitude, a simple, linear 5-Why can be built for any issue. A bigger incident will have a more detailed analysis, because it has more parts, but every analysis can begin with just a few Why questions. A simple analysis makes it easy to get started. It can then expand into as much detail is needed to thoroughly explain the issue. Cause-and-effect relationships should remain simple, even on complex issues. It’s the number of cause-and-effect relationships that change.

WEBINAR: "How to start with a 5-WHY and expand it - A Titanic Case Study"  Friday, April 13 at 10AM CDT

5-WHY Cause Mapping

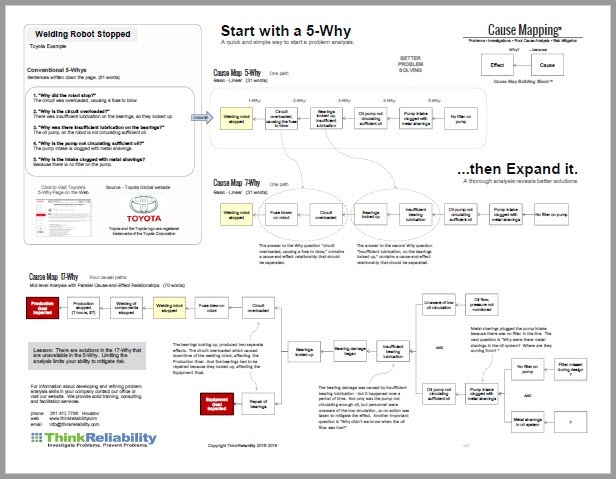

Our Cause Mapping method is not constrained by five Why questions. In the welding robot example, the answer to the 1st Why question is “Because the circuit overloaded, causing a fuse to blow.” A cause-and-effect relationship has been written into the answer. The answer to the 2nd Why question makes the same mistake. The original 5-Why breaks into an easier to read 7-Why. The 7-Why then breaks into a 17-Why with two different goals affected. The production goal because the welding robot stopped and the property goal because the bearings had to be replaced in the pump. There are two other cause-and-effect relationships shown on the welding robot Cause Map. Why didn’t we know the pump lost circulation and why were there metal shavings in the pump? Both questions are important when considering different options for preventing a similar problem in the future.

cm-near-miss

Download the above PDF which contains the 5-Why, the 7-Why and the 17-Why and watch the explanation provided in the video. Let us know if you have any questions about establishing a 5-Why baseline with your people and bringing the Cause Mapping method to your organization. Attend one of our Cause Mapping Public Workshops or have a Cause Mapping Workshop presented at your site by one of our ThinkReliability certified instructors.
